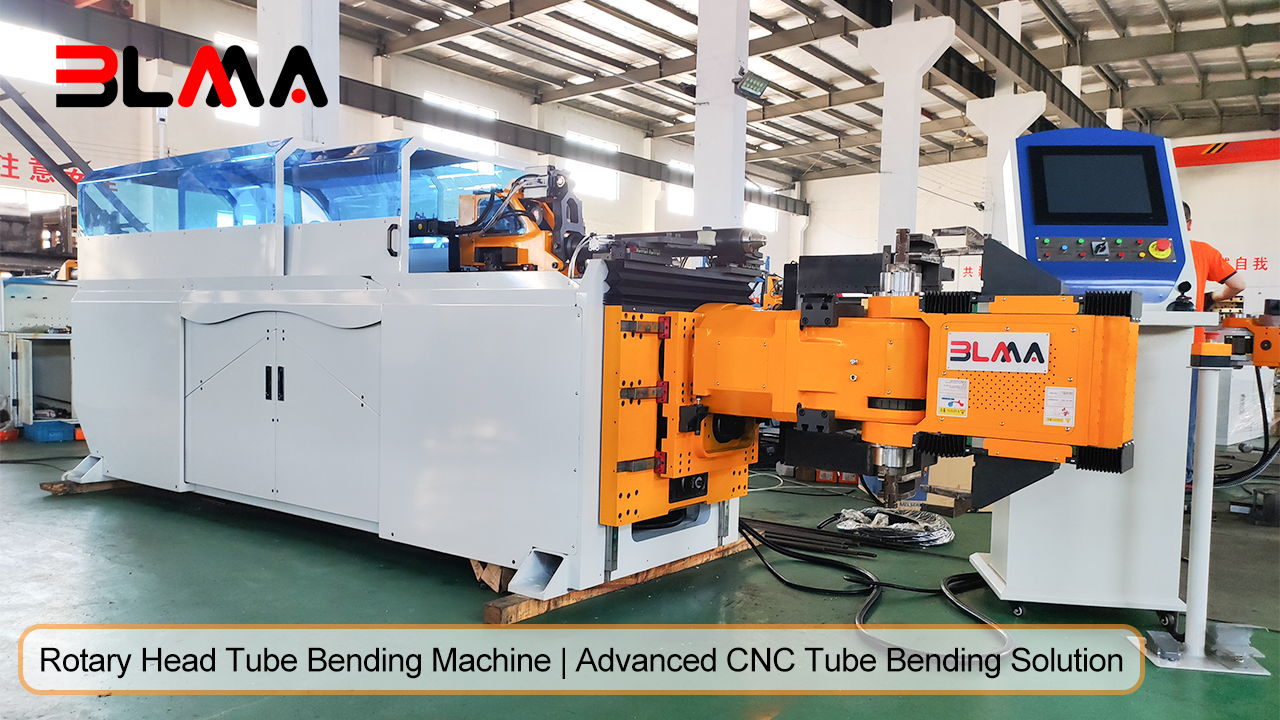

What Is a Rotary Head Tube Bending Machine?

A Rotary Head Tube Bending Machine is a specialized CNC tube bending system in which the bending head can rotate to different positions during the bending process. Unlike conventional tube bending machines with a fixed bending head, rotary head technology provides greater flexibility when producing complex tube geometries.

This design allows manufacturers to bend tubes with multiple directions, varying bend radii, and complicated three-dimensional shapes while minimizing interference between the tube, tooling, and machine structure.

Rotary head technology has become an important solution for industries requiring high-precision tube fabrication, including automotive, aerospace, furniture, HVAC, medical equipment, and industrial machinery.

How Does a Rotary Head Tube Bending Machine Work?

The machine combines CNC-controlled tube feeding, tube rotation, and bending operations with an additional rotary mechanism built into the bending head.

During production, the bending head automatically rotates to the required position before each bend. Instead of forcing the tube into awkward positions, the machine adjusts the bending head orientation to create the most efficient bending path.

This additional degree of movement provides several important advantages:

• Better clearance for complex tube shapes

• Reduced interference during bending

• Support for multiple bending directions

• Improved flexibility for complicated workpieces

• Stable and repeatable CNC-controlled production

The entire bending sequence is controlled automatically by the CNC system, ensuring consistent quality from the first part to the last.

Why Rotary Head Technology Is Different

Traditional tube bending machines use a fixed bending head. While this design is suitable for many standard applications, certain tube designs become difficult or even impossible to manufacture because the tube may collide with the machine or tooling during the bending process.

A rotary head machine addresses this challenge by allowing the bending head itself to rotate. This additional movement significantly expands the machine's ability to handle complex components.

Typical advantages include:

• Easier production of complex 3D tubes

• Improved accessibility for difficult bends

• Support for multiple bend radii

• Better tooling flexibility

• Reduced risk of collision during bending

These advantages make rotary head technology particularly valuable for manufacturers producing high-value and complex tube components.

Typical Applications

Rotary Head Tube Bending Machines are widely used in industries requiring precision tube forming, including:

• Automotive exhaust systems

• Vehicle chassis components

• Furniture frames

• Medical equipment

• Heat exchanger tubing

• Aerospace hydraulic lines

• Bicycle frames

• Agricultural machinery

• Industrial automation equipment

• Fitness equipment

Whenever a tube contains multiple bends in different directions or requires additional clearance during production, rotary head technology can provide a more efficient manufacturing solution.

Why Choose a Rotary Head Tube Bending Machine?

Manufacturers choose rotary head technology because it offers greater flexibility without sacrificing bending accuracy.

Compared with conventional tube bending equipment, rotary head machines can process more complicated workpieces while maintaining high repeatability and production efficiency.

For companies producing a wide variety of tube components, rotary head technology helps reduce production limitations and increases manufacturing capability for demanding applications.

Conclusion

A Rotary Head Tube Bending Machine is an advanced CNC solution designed for manufacturers who need greater flexibility in tube forming. By allowing the bending head to rotate during production, the machine minimizes interference, supports complex multi-directional bending, and delivers precise, repeatable results across a wide range of industries.

As product designs become increasingly sophisticated, rotary head technology provides manufacturers with a practical way to produce high-quality bent tubes more efficiently and reliably.
