CNC Tube Bending Machine Components Explained: How Does a CNC Tube Bender Work?

CNC tube bending machines have become essential equipment in modern tube fabrication industries. From automotive exhaust systems and roll cages to furniture frames and fitness equipment, manufacturers rely on CNC tube benders to achieve high precision, repeatability, and productivity.

But how does a CNC tube bending machine actually work? What are the key components that determine bending accuracy and machine reliability?

In this guide, we explain the major components of a CNC tube bending machine and how they work together to produce complex tube parts with exceptional consistency.

What Is a CNC Tube Bending Machine?

A CNC tube bending machine is an automated tube processing system that uses servo motors, hydraulic systems, and intelligent controls to perform feeding, rotation, and bending operations according to programmed instructions.

Compared with conventional bending equipment, CNC tube benders offer:

• Higher bending accuracy

• Improved repeatability

• Reduced labor requirements

• Faster production cycles

• Capability to produce complex multi-plane bends

They are widely used in automotive, aerospace, furniture, HVAC, medical equipment, fitness equipment, and industrial fabrication applications.

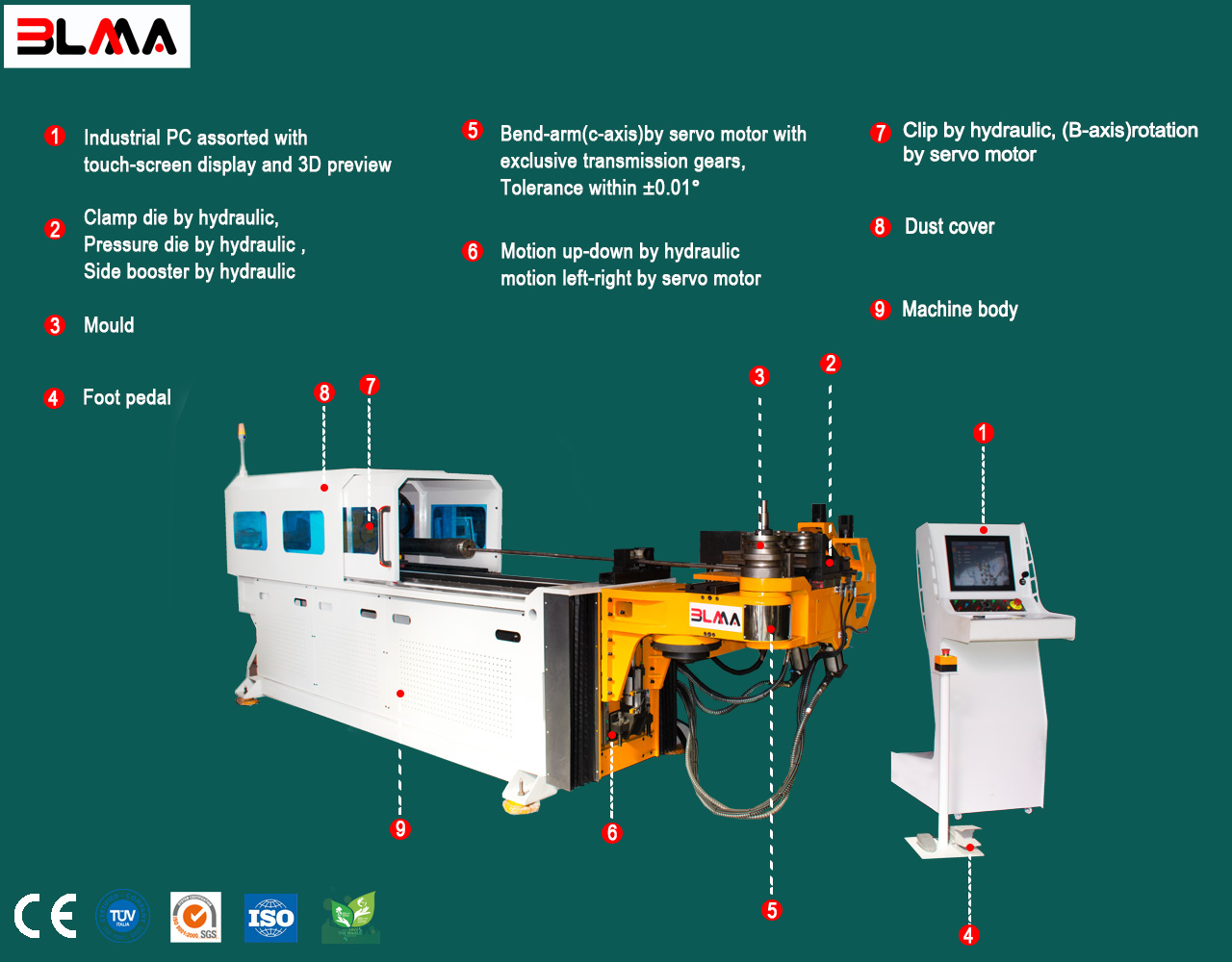

Key Components of a CNC Tube Bending Machine

1. Clamping Cylinder

The clamping cylinder securely holds the tube during the bending process, preventing slippage and ensuring stable positioning.

Its primary functions include:

• Maintaining tube stability

• Reducing dimensional errors

• Improving repeatability

2. Pressure Die System

The pressure die supports the tube while it is being bent. It helps prevent wrinkles, flattening, and excessive deformation.

Benefits include:

• Better surface quality

• Improved bend consistency

• Reduced scrap rates

3. Bending Servo Motor

The bending servo motor controls the bending axis with exceptional precision.

Advantages:

• Accurate bend angles

• Smooth movement

• High positioning accuracy

4. Feeding Servo Motor

The feeding servo motor determines the exact length of tube movement between bends.

This allows manufacturers to produce components with precise dimensions and excellent repeatability.

5. Rotating Servo Motor

The rotating servo motor rotates the tube between bending operations.

It enables:

• Multi-plane bending

• Complex geometries

• Advanced tube fabrication applications

6. Auxiliary Pushing Servo Motor

For large-radius or thin-wall tube applications, the auxiliary pushing system provides additional support during bending.

Benefits include:

• Reduced flattening

• Better bend quality

• Improved forming capability

7. Hydraulic Valve System

The hydraulic valve manifold regulates oil flow and controls the sequence of machine actions.

It ensures:

• Stable hydraulic performance

• Fast response speed

• Reliable operation

8. Hydraulic Power Unit

The hydraulic power unit provides the force required for clamping and auxiliary movements.

Key advantages:

• Stable pressure output

• Continuous operation capability

• Long service life

9. Precision Tooling System

Tooling plays a critical role in tube bending quality.

A complete tooling system typically includes:

• Bend die

• Clamp die

• Pressure die

• Mandrel

Customized tooling ensures optimal performance based on tube diameter, material type, wall thickness, and bend radius.

10. Electrical Cabinet and CNC Control System

The CNC control system acts as the brain of the machine.

Modern systems provide:

• Program storage

• Real-time monitoring

• Automatic operation

• User-friendly interfaces

• Production data management

How Do These Components Work Together?

The tube is first clamped securely in position.

The feeding servo motor moves the tube to the programmed length, while the rotating servo motor adjusts the tube orientation.

The bending servo motor then performs the bend according to the specified angle. During this process, the pressure die and auxiliary pushing system support the tube to maintain its shape and minimize deformation.

Meanwhile, the hydraulic and electrical systems coordinate all movements to ensure smooth, accurate, and repeatable production.

Why Component Quality Matters

Many buyers focus only on machine specifications such as tube diameter capacity and axis numbers.

However, the long-term performance of a CNC tube bending machine depends heavily on the quality of its components.

Premium components offer:

• Higher production efficiency

• Greater bending accuracy

• Lower maintenance costs

• Reduced downtime

• Longer machine lifespan

Why Choose BLMA CNC Tube Bending Machines?

At BLMA, every CNC tube bending machine is built using carefully selected industrial-grade components and precision manufacturing processes.

Our machines combine:

• Intelligent CNC controls

• Servo-driven precision

• Heavy-duty machine structures

• Customized tooling solutions

• Professional engineering support

Whether you manufacture automotive parts, furniture frames, fitness equipment, HVAC components, or industrial tubing products, BLMA provides reliable tube bending solutions tailored to your production requirements.

Conclusion

Understanding the components of a CNC tube bending machine helps manufacturers make informed purchasing decisions.

From servo motors and hydraulic systems to tooling and control technology, every component contributes to bending quality, productivity, and machine reliability.

Choosing a well-engineered CNC tube bender means investing in higher efficiency, consistent product quality, and long-term manufacturing success.
