3 Axis CNC Tube Bender, China 3 Axis Pipe Bending Machine

Views:58     Author:Site Editor     Publish Time: 2021-04-25      Origin:Site Inquire

3 axis CNC tube bender, China 3 axis pipe bending machine



Description


3 axis CNC tube bender is an ideal solution for increasing production volume while decreasing the time each piece takes to produce. It allows for precision bending and ends forming, a process that is difficult and time-consuming to perform manually.



Their rigidity, stability, and untouchable precision in exceptional conditions such as humidity or harsh temperatures are what make them stand out from the crowd.



China 3 axis CNC tube bending machine is designed for reducing the time it takes to make bent parts. Controlled by a Windows-based interface platform, the tube bender requires manual loading and unloading. A standard onboard diagnostic system shows the status of all digital inputs and outputs.



3 axis CNC tube bender


The main feature of 3 axis CNC tube bender


1. For making quick work of large-radius bends and doing complete circles.

2. China 3 axis pipe bending machine is especially applicable to the production of steel greenhouse frames.

3. Capable of rolling bending thin-walled mild steel, stainless steel round & square tubes.

4. Manual adjustment of the top roll.

5. Two driving rollers and one driven roller.

6. Foot pedal with an emergency stop available on request. This specially designed section and tube rolling machine can be used on either side front or rear of the machine, the front is designed to handle the larger tube as the rear.

7. 3 axis CNC tube bender is capable of rolling smaller tubes.

8. Toolings made of grey cast iron allows long service life.



Main parts of China 3 axis pipe bending machine

1. Cooling system - it is a fan cooling system. The water cooling system and fan cooling system both are available for you. Different cooling systems were chosen on your tube bending machine based on your own situation and condition.



2. Hydraulic system cabinet - inside of this cabinet installed with all hydraulic system for controlling the whole hydraulic working.



3. Rotating servo motor - rotating the pipe in different angles to realize the 3D pipe bending. Pipe turning can only be controlled by a servomotor to guarantee the pipe turning accuracy, finally, guarantee the pipe bending accuracy.



4. Safety mat - it is a optional device. This safety mat is to protect the worker's safety when they doing bending work. When people stand on a safety mat, the 3 axis CNC tube bender will immediately stop working.



5. Emergency stop - any emergencies occurs, you can touch this button to stop the machine or stop pipe bending.



6. Machine head shifting - multi-stacks pipe bending machine with function of machine head stacks shifting automatically. If one pipe with different bending radius, a multi-stacks CNC pipe bending machine is suitable for your bending. Tooling stacks shifting can be controlled by hydraulic or electric(servo motor) which based on your requirement and budget.



7. Tooling demolding - multi-stacks pipe tube bending machine with function of multi stacks tooling demolding before machine head shifting.



8. Electric cabinet - inside of this cabinet installed with all-electric parts and controlling system for controlling the whole electric working.

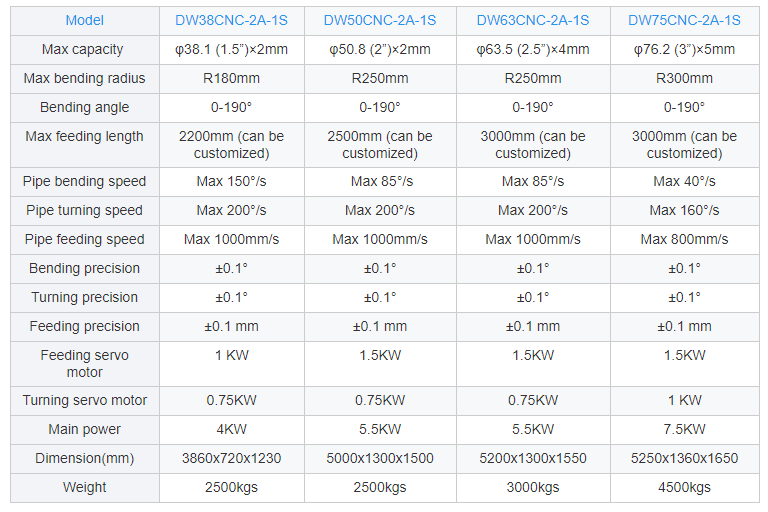

Product parameters


1


Products


2

3
