Tube bending is an essential manufacturing process used in automotive production, furniture manufacturing, fitness equipment, exhaust systems, and industrial metal fabrication.
However, achieving a smooth and precise bend requires more than selecting the right CNC tube bending machine. The tooling configuration, particularly whether an internal mandrel is used, plays a critical role in determining the final bending quality.
Mandrel tube bending and non-mandrel bending are two common bending methods, but they differ significantly in their ability to control wrinkling, flattening, and cross-sectional deformation.
For square, rectangular, and oval tubes, internal mandrel support is especially important because their non-circular cross-sections are susceptible to distortion during bending.
In this article, we compare mandrel and non-mandrel tube bending, explain how internal support affects bending quality, and demonstrate the advantages of mandrel bending through actual rectangular tube bending results from BLMA.
1.1 1. What Is Mandrel Tube Bending?
Mandrel tube bending is a process in which an internal support tool, known as a mandrel, is inserted into the tube during bending.
The mandrel supports the tube walls around the bending area, helping the material maintain its original cross-sectional geometry while the tube is formed around the bending die.
During the bending process, the outer wall of the tube experiences tensile stress, while the inner wall experiences compressive stress.
Without sufficient support, these forces can cause wrinkling, flattening, or localized wall collapse.
A properly designed mandrel helps control these defects by providing internal support during the forming process.
The main advantages of mandrel tube bending include:
Reduced wrinkling and cross-sectional deformation.
Improved control of tube flattening and wall collapse.
Better dimensional accuracy and bending consistency.
Greater flexibility when bending thin-walled tubes and tight bending radii.
Improved bending quality for square, rectangular, and oval profiles.
Mandrel bending is widely used in precision tube fabrication applications where the final shape, surface quality, and dimensional consistency of the bent tube are important.
1.2 2. What Is Non-Mandrel Tube Bending?
Non-mandrel tube bending is performed without an internal mandrel supporting the tube walls during the bending operation.
Depending on the bending method, the tube is formed using a bending die, clamp die, pressure die, or other external tooling.
This method can be suitable for applications involving thicker-walled tubes, larger bending radii, or products with less demanding cross-sectional tolerances.
However, without internal support, the tube walls may be more susceptible to wrinkling, flattening, and distortion.
The risk of deformation becomes more significant when bending thin-walled tubes, working with small bending radii, or processing non-circular profiles.
For square, rectangular, and oval tubes, non-mandrel bending may produce unacceptable deformation when the tube geometry and bending conditions require additional internal support.

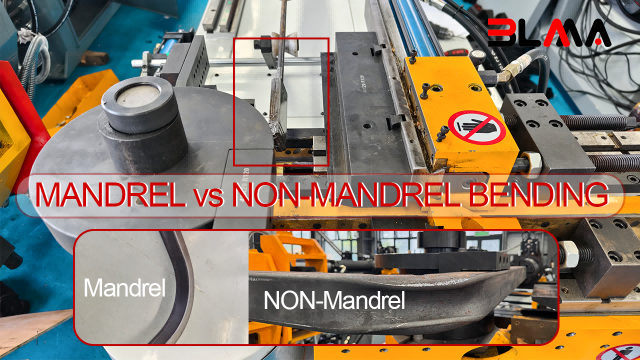

1.3 3. Mandrel vs Non-Mandrel Tube Bending: Actual Bending Results
One of the most effective ways to understand the difference between mandrel and non-mandrel bending is to compare the finished workpieces.
The following images illustrate how internal support can influence the bending quality of metal tubes.

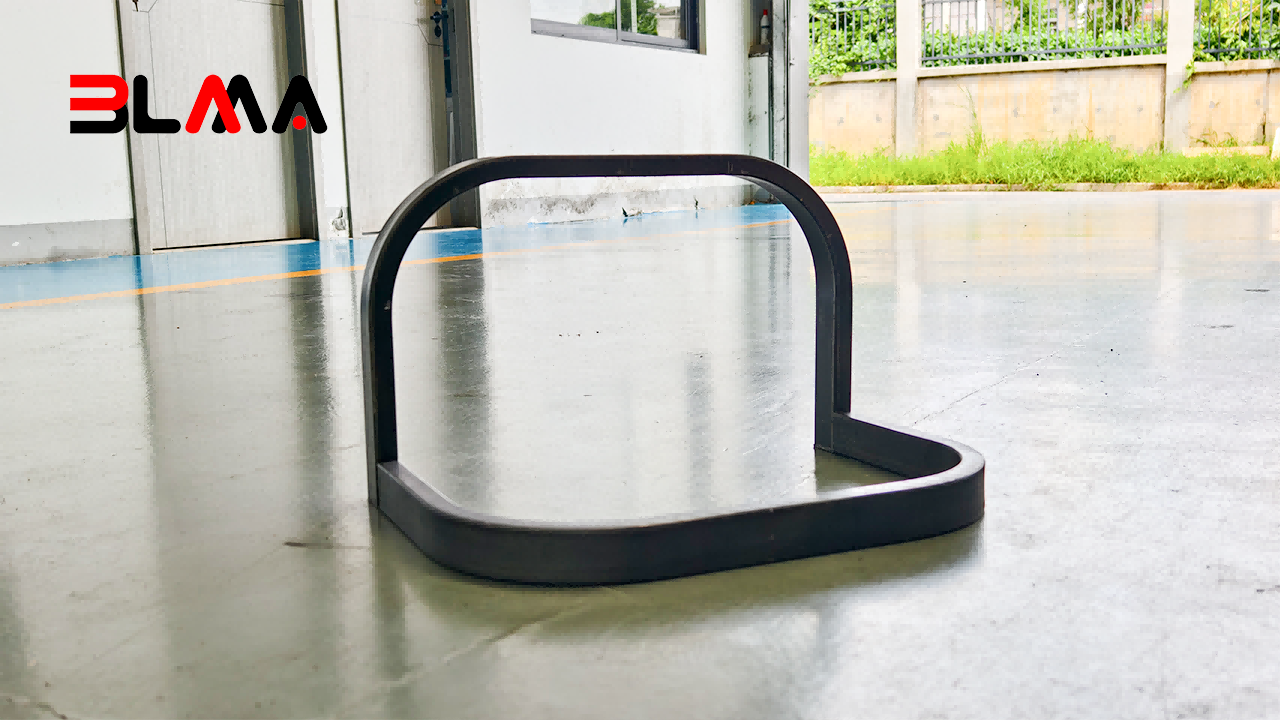

1.4 Smooth Rectangular Tube Bending with Mandrel Support
The rectangular tube shown above was bent using internal mandrel support. The finished workpiece demonstrates a smooth bending surface and well-maintained cross-sectional geometry, with minimal visible wrinkling or deformation.
Proper mandrel support helps stabilize the tube walls during bending, making it particularly valuable for precision rectangular tube fabrication.

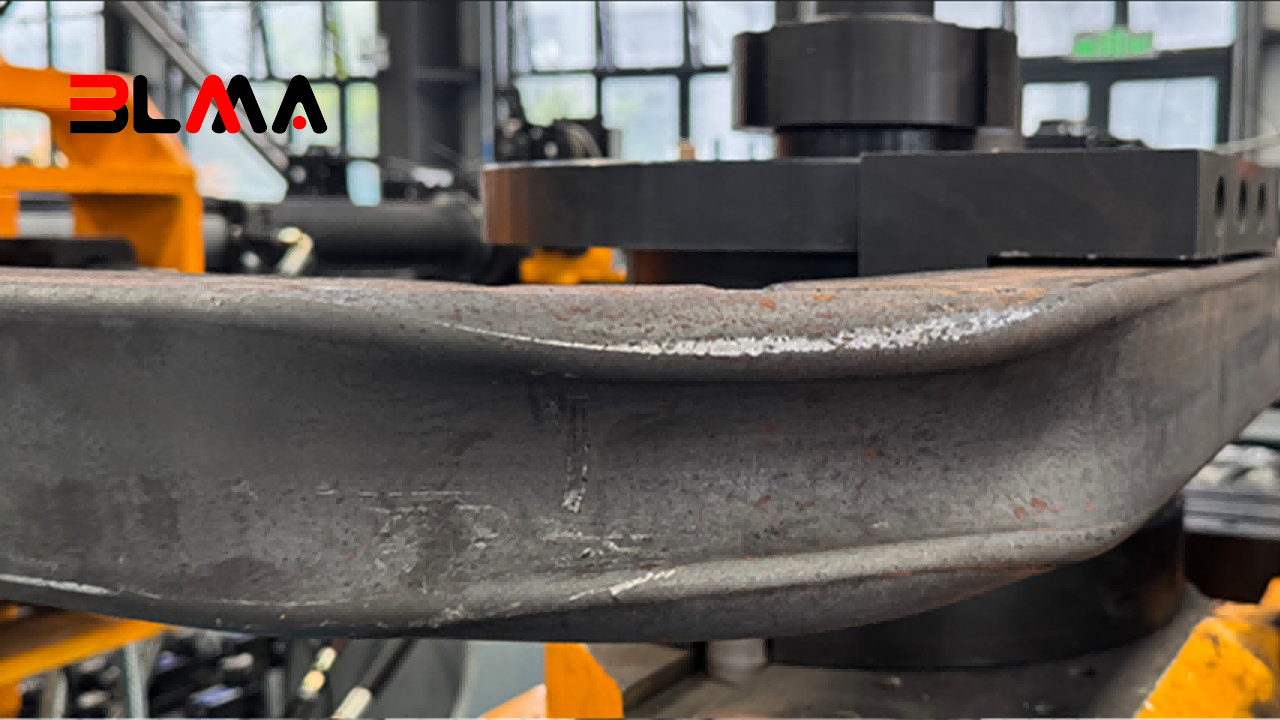

1.5 Tube Wrinkling and Deformation Without Mandrel Support
The image above shows a tube that developed visible wrinkles during bending without internal mandrel support.
When the inner tube wall is subjected to compressive stress, insufficient support may cause the material to buckle, resulting in wrinkling, flattening, or cross-sectional distortion.
These defects can affect the appearance, dimensional accuracy, and assembly compatibility of the finished component.
Important: These images demonstrate different bending results. The final bending quality also depends on the tube material, dimensions, wall thickness, bending radius, tooling design, and machine settings
1.6 4. Watch BLMA Precision Rectangular Tube Bending in Action
The following video demonstrates rectangular tube bending using a BLMA CNC tube bending machine equipped with internal mandrel support.
The bending process is designed to maintain the rectangular tube's cross-sectional geometry while minimizing wrinkles and unwanted deformation.
1.6.1 What Does This Rectangular Tube Bending Video Demonstrate?
The video highlights the importance of appropriate tooling and internal support when processing rectangular tubes.
By combining a suitable mandrel with precision CNC bending control, manufacturers can achieve consistent bending angles, smooth bending surfaces, and improved cross-sectional stability.
For applications involving furniture frames, automotive components, fitness equipment, and other precision-fabricated structures, maintaining the original tube profile is essential to achieving the required product quality.
BLMA provides application-specific mandrel and tooling configurations to meet different rectangular tube bending requirements.
1.7 5. Why Do Square, Rectangular, and Oval Tubes Need Mandrel Support?
Unlike round tubes, square, rectangular, and oval tubes have non-circular cross-sections.
Their flat walls, corners, and curved profile sections respond differently to the tensile and compressive forces generated during bending.
As a result, these profiles are particularly susceptible to cross-sectional distortion, wall buckling, and wrinkling.
For most precision bending applications involving square, rectangular, and oval tubes, internal mandrel support is an important part of achieving consistent bending quality.
The need for internal support becomes particularly significant under the following conditions:
Thin-walled tubes with limited resistance to local buckling.
Tight bending radii that create demanding forming conditions.
Applications requiring minimal wrinkling or flattening.
Workpieces with strict dimensional or assembly tolerances.
However, not every non-circular tube requires a mandrel. The actual requirement depends on the tube dimensions, wall thickness, material properties, bending radius, and acceptable deformation tolerances.
1.8 6. Mandrel vs Non-Mandrel Bending: Key Differences
Comparison
Mandrel bending
Non-mandrel bending
Internal support
Yes
No
Wrinkling control
Improved with suitable tooling
Greater risk under demanding conditions
Cross-sectional stability
Better supported
Depends on material and tube geometry
Thin-walled tubes
Suitable for precision applications
Greater risk of deformation
Tight bending radii
Greater capability with appropriate tooling
More limited by wall stability
Tooling requirements
Requires an internal mandrel
No internal mandrel required
Typical applications
Precision tube and profile bending
Less demanding bending applications
The selection of a bending method should be based on the required bending quality, material properties, tube dimensions, and production requirements.
1.9 7. How to Select the Right Mandrel and Tooling for Tube Bending
A mandrel alone does not guarantee a perfect bending result.
The mandrel design, bending die, clamp die, pressure die, and other tooling components must work together to control material deformation during bending.
When selecting the appropriate tooling configuration, manufacturers should consider the following parameters.
Tube dimensions and wall thickness
The outside dimensions and wall thickness determine the internal geometry of the tube and influence the type of mandrel required.
Material properties
Different materials, including carbon steel, stainless steel, aluminum, and copper, exhibit different forming characteristics and require suitable bending parameters.
Centerline bending radius (CLR)
The bending radius directly influences the deformation experienced by the tube walls. Smaller bending radii generally create more demanding forming conditions.
Mandrel design and positioning
The mandrel must provide appropriate internal support while allowing the tube to move and deform during bending.
Wiper die and external tooling
For demanding applications, a properly designed wiper die may provide additional support near the inner bending radius to help reduce wrinkling.
Sample bending tests
For complex profiles or strict dimensional requirements, sample bending tests help verify the tooling configuration and optimize machine parameters before mass production.
BLMA manufactures CNC tube bending machines for a wide range of industrial applications, including round tube, square tube, rectangular tube, and oval tube bending.
Our machines can be configured with application-specific mandrels and precision tooling to meet different bending requirements.
BLMA tooling is manufactured using CNC machining centers and high-quality 42CrMo steel to support dimensional accuracy, durability, and consistent bending performance.
Our CNC tube bending solutions are designed to support precision manufacturing across industries such as automotive production, furniture manufacturing, fitness equipment, and general metal fabrication.
For applications involving complex profiles, tight bending radii, or demanding dimensional requirements, our engineering team can evaluate your tube specifications and recommend a suitable machine and tooling configuration.
1.11 9. Frequently Asked Questions About Mandrel Tube Bending
Q1. What is the main difference between mandrel and non-mandrel tube bending?
Mandrel bending uses an internal support tool to help maintain the tube's cross-sectional shape during bending. Non-mandrel bending is performed without internal support and may be suitable for less demanding bending applications.
Q2. Do rectangular tubes require a mandrel for bending?
Most precision rectangular tube bending applications benefit from internal mandrel support, particularly when processing thin-walled tubes or tight bending radii. The actual requirement depends on tube geometry, material, and acceptable deformation.
Q3. Can square tubes be bent without a mandrel?
Yes. Certain square tubes can be bent without a mandrel when their wall thickness, bending radius, and quality requirements permit. However, internal support is commonly used for demanding precision applications.
Q4. Why do tubes wrinkle during bending?
Wrinkling occurs when compressive stresses cause the inner tube wall to buckle. Insufficient internal support, unsuitable tooling, thin walls, and tight bending radii can increase the risk.
Q5. Does mandrel bending completely eliminate wrinkles?
No. A properly designed mandrel helps reduce wrinkling and deformation, but bending quality also depends on the material, bending radius, tooling configuration, and machine settings.
Q6. What is the difference between a mandrel and a wiper die?
A mandrel supports the tube internally, while a wiper die provides external support near the inner bending radius to help control wrinkling. Both may be used together in demanding bending applications.
Q7. Can one mandrel be used for different tube sizes?
Mandrels are generally designed for specific internal tube dimensions and profiles. Different tube sizes or wall thicknesses may require different mandrels to provide appropriate support and clearance.
Q8. Which industries commonly use mandrel tube bending machines?
Mandrel tube bending machines are used in automotive manufacturing, furniture production, fitness equipment, aerospace components, exhaust systems, and industrial metal fabrication.
Q9. How do I determine whether my tube requires mandrel support?
The decision depends on the tube dimensions, wall thickness, material, bending radius, and acceptable deformation tolerances. Sample bending tests can help determine whether internal support is required.
Q10. What information should I provide when requesting a CNC tube bending machine?
Please provide the tube dimensions, material, wall thickness, centerline bending radius, bending angle, and technical drawings or sample workpieces. These details help determine the appropriate machine and tooling configuration.
1.12 Conclusion
Mandrel and non-mandrel tube bending are suitable for different manufacturing requirements.
For precision applications involving square, rectangular, and oval tubes, internal mandrel support plays an important role in maintaining cross-sectional geometry, minimizing wrinkling, and achieving consistent bending quality.
As demonstrated by the rectangular tube bending examples and video, the correct combination of mandrel design, precision tooling, and CNC bending control can significantly improve the quality of finished tubular components.
Selecting the appropriate machine and tooling configuration is essential for manufacturers seeking reliable, repeatable, and high-quality tube bending results.
